Bauer emci silea 45 water drill
| Construction | Drilling machine |
|---|---|
| Year | 2014 |
| Price | € 45.000,- |
| Fuel | Diesel |
| Operating hours | 3.174 h |
| Power | 37 kW (50 PK) |
| Weight | 2.650 kg |
| General state | Good |
| Technical state | Good |
| Optical state | Good |
Type: DRILLING RIG
Brand: EMCI
Model: SILEA 45
Serial number:

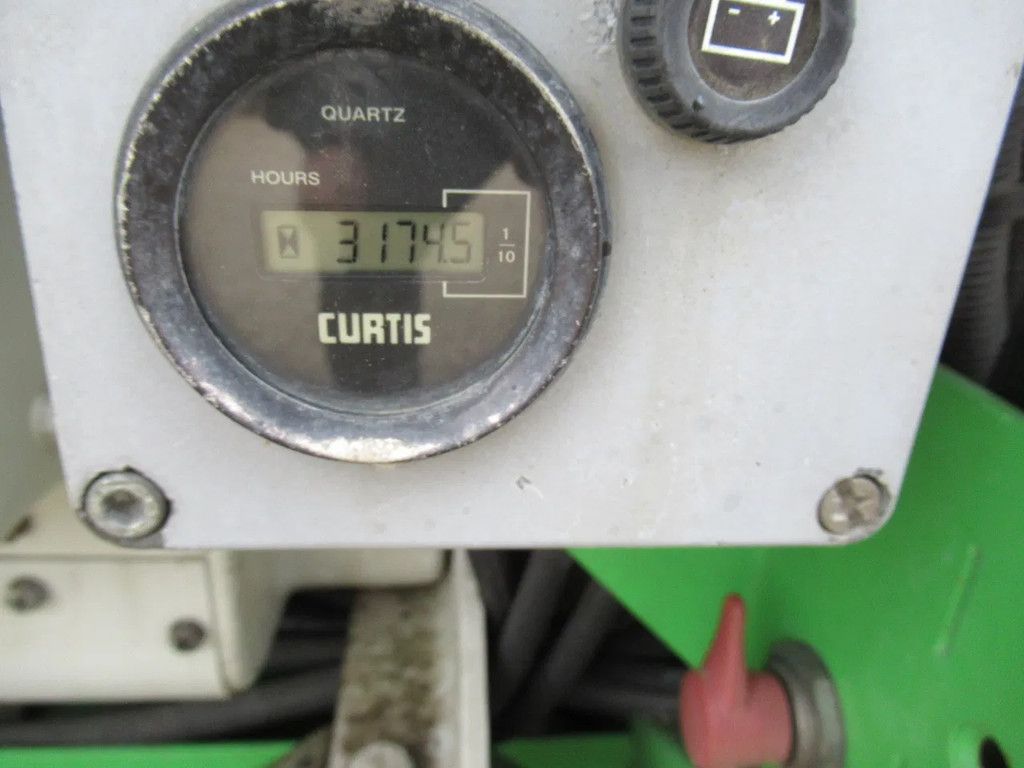

hours on meter : 3174
Manufactured: 2014
Power: 50 HP
Dimensions: L/H/W 3.80/1.90/1.30

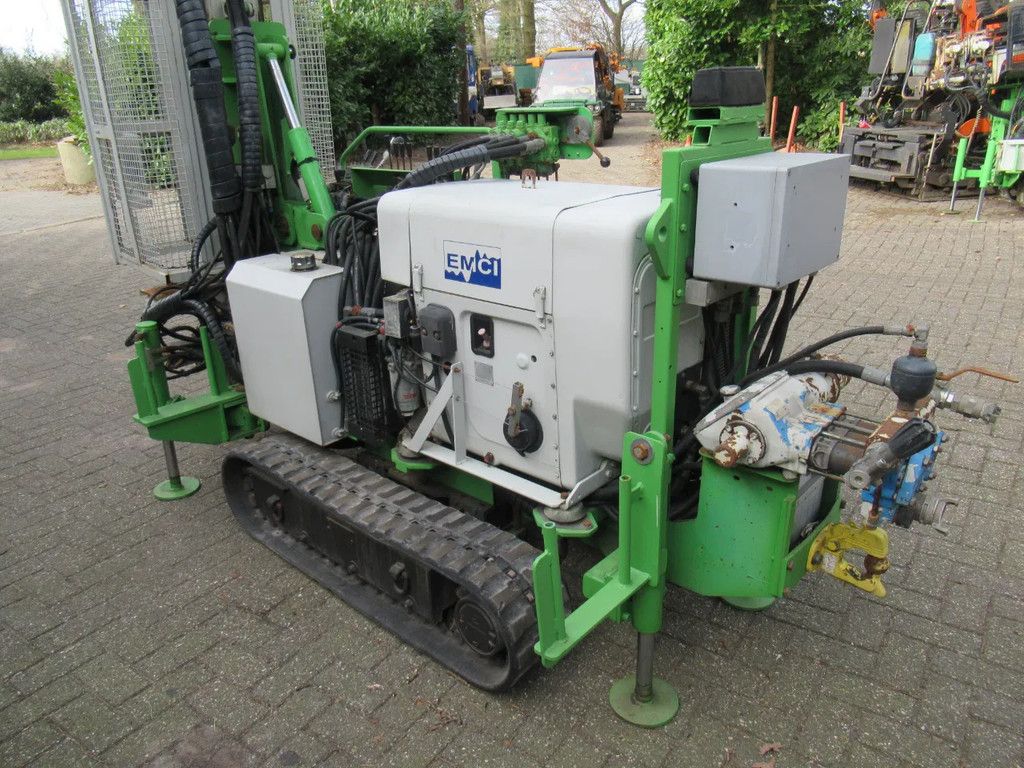

Crawler DRILL RIG EMCI SILEA 45
Multipurpose drill rig for :
- core drilling
- geotechincal jobs
PARAMETERS
ENGINE: HATZ 3L41C, 50 KM at 2300 rpm
Strokes of rotary head/ feed lengt: 2300 mm
PULL DOWN FORCE: 15 kN (1.5 Tons)
PULL BACK FORCE: 25 kN (2.5 Tons)
Winch: Hydraulic line for winch

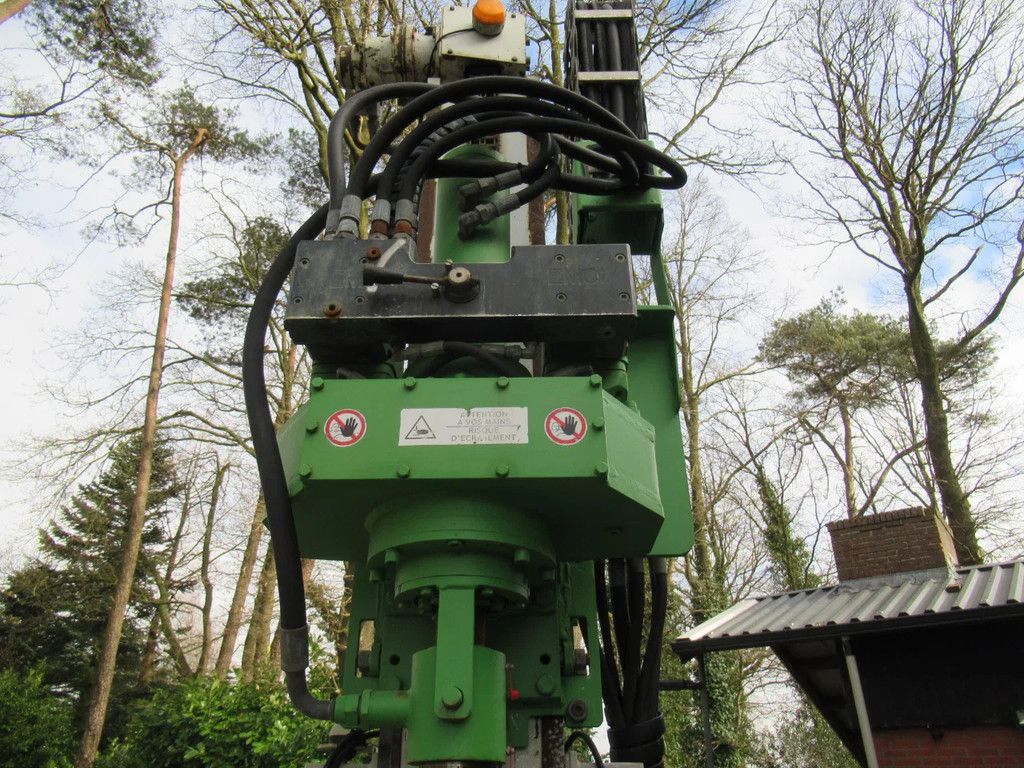

ROTARY HEAD:
- 4 gears hydraulic
- Max. torque: 430 daNm - 430 kg/m !!!
- Max. Speed: 300 Rpm
- Drifter/Percussion
DOUBLE CLAMPS:
Max. open diameter: 170 mm
TRIPLEX PUMP BERTHOUD for core drilling
Out put flow: 80 l/min
Pressure max: 40 bar
STORAGE:
For drill rods and casing pipes
Rubber tracks
Remont control for driving IMET

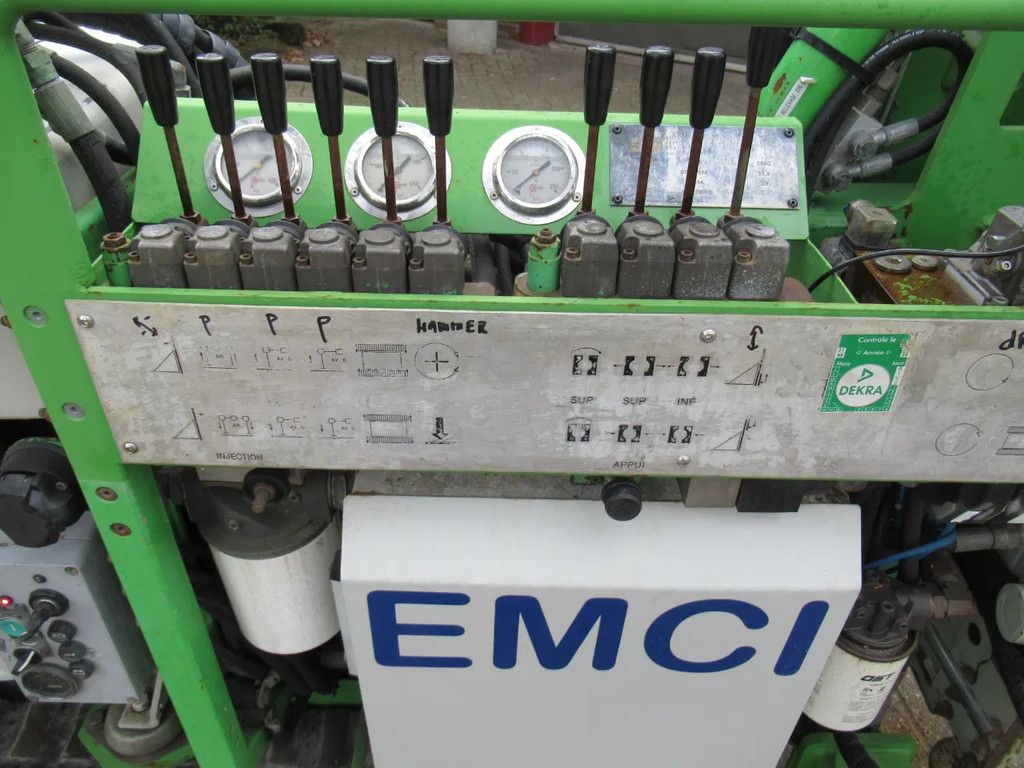

Rig is controlled by hydraulic levers !!!
Weight: 2650 kg
Brand: EMCI
Model: SILEA 45
Serial number:
hours on meter : 3174
Manufactured: 2014
Power: 50 HP
Dimensions: L/H/W 3.80/1.90/1.30
Crawler DRILL RIG EMCI SILEA 45
Multipurpose drill rig for :
- core drilling
- geotechincal jobs
PARAMETERS
ENGINE: HATZ 3L41C, 50 KM at 2300 rpm
Strokes of rotary head/ feed lengt: 2300 mm
PULL DOWN FORCE: 15 kN (1.5 Tons)
PULL BACK FORCE: 25 kN (2.5 Tons)
Winch: Hydraulic line for winch
ROTARY HEAD:
- 4 gears hydraulic
- Max. torque: 430 daNm - 430 kg/m !!!
- Max. Speed: 300 Rpm
- Drifter/Percussion
DOUBLE CLAMPS:
Max. open diameter: 170 mm
TRIPLEX PUMP BERTHOUD for core drilling
Out put flow: 80 l/min
Pressure max: 40 bar
STORAGE:
For drill rods and casing pipes
Rubber tracks
Remont control for driving IMET
Rig is controlled by hydraulic levers !!!
Weight: 2650 kg
